Producto disponible solo en PC ARMADA
Procesador
1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G
Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
(Por favor, consulte la "Lista de Soporte de CPUs" para más información.)
Chipset
1. AMD A520
Memoria
1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
2. AMD Ryzen™ 5000 G
series processors:
Support for DDR4 4400(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3. AMD Ryzen™ 5000 series processors:
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
4. 3rd Gen AMD Ryzen™ Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
5. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
6. Arquitectura de memoria Dual Channel
7. Soporte para módulos de memoria ECC Un
buffered DIMM 1Rx8/2Rx8
8. Soporte para módulos de memoria non
ECC Un
buffered DIMM 1Rx8/2Rx8
9. Soporte para módulos de memoria Extreme Memory Profile (XMP)
Gráfica Integrada
1. 1 x DVI
D port, supporting a maximum resolution of [email protected] Hz
D port does not support D
Sub connection by adapter.
2. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz
Audio
Realtek® audio codec
Audio de alta definición
2/4/5.1/7.1
channel
channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
CPU
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset
1. 2 x PCI Express x1 slots, supporting PCIe 3
Interfaz de almacenamiento
CPU
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset
1. 4 x conector SATA 6Gb/s
2. Soporta RAID 0, RAID 1, y RAID 10
USB
CPU
1. 4 x USB 3.2 Gen 1 ports on the back panel
Chipset
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
2. 6 x puerto USB 2.0/1.1 (2 puertos en el panel posterior, 4 puertos disponibles a través de los conectores USB internos)
Conectores Internos E/S
1. 1 x 24
pin ATX main power connector
2. 1 x conector de alimentación ATX 12V 8
pin
3. 1 x conector del ventilador de la CPU
4. 2 x cabeceras para ventilador del sistema
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x Triple conector socket M.2
8. 4 x conectores SATA 6 Gb / s
9. 1 x front panel header
10. 1 x conector de audio en el panel frontal
11. 1 x conector para altavoz
12. 1 x USB 3.2 Gen 1 header
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC
TPM2.0_S module only)
La función TPM es opcional según las diferentes políticas locales
15. 1 x conector del puerto de serie
16. 1 x conector de intrusión en el chasis
17. 1 x Clear CMOS jumpe

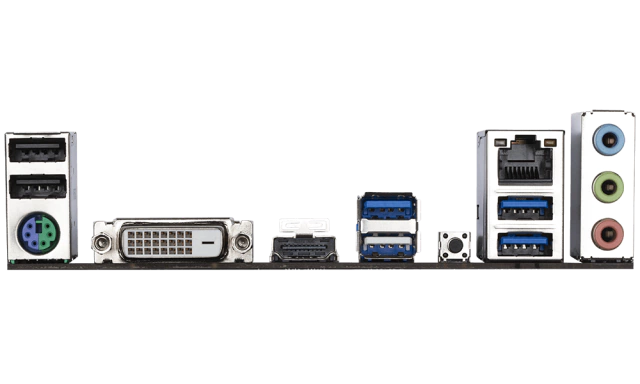

Panel E/S Trasero
1. 1 x puerto teclado / ratón PS / 2
2. 1 x puerto DVI
3. 1 x HDMI
4. 4 x USB 3.2 Gen 1 ports
5. 2 x puerto USB 2.0/1.1
6. 1 x Q
Flash Plus button
7. 1 x Puerto RJ
45
8. 3 x audio jacks
