Model
GP

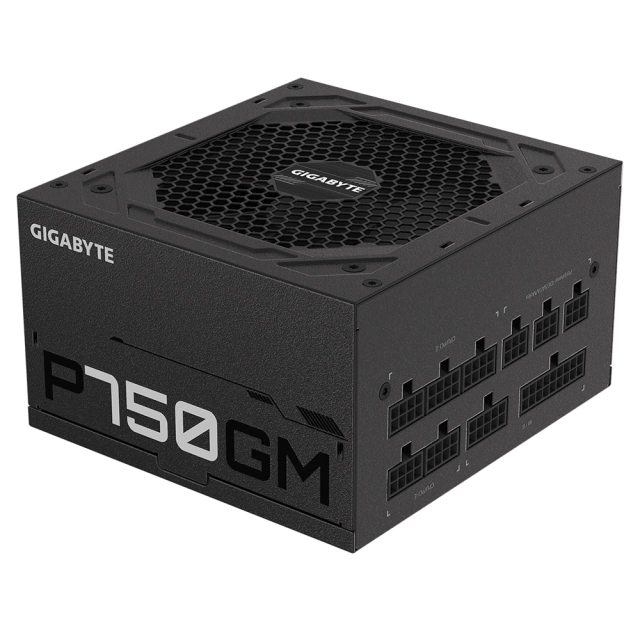

P750GM
Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC (>0.9 typical)
Input Voltage
100
240 Vac (full range)
Input Current
12
6 A
Input Frequency
60
50 Hz
Output Capacity
750W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing ( HYB ) fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100
500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI
e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4
Pin floppy x 1 :
500mm+120mm+120mm+120mm *1
